The SLE20 laser enclosure from Turnkey Technologies, Inc, meets your requirements for safe , light tight laser marking. This FDA and CDRH class 1 certified enclosure is compatible with a variety of marking lasers and is the perfect combination of safety and utility for your marking needs.

SLE20 LASER ENCLOSURE FRONT OPEN
SLE20 LASER ENCLOSURE FRONT

These Standard Features Keep You Productive

  • 19″ Wide by 30″ Deep Interior Workspace
  • 16″ Wide by 16″ Deep Nest Mounting Plate
  • 13 3/4″ of Laser Marking Height Adjustment
  • 20″ Maximum Clearance Between the Laser Lens and Work Surface
  • 13 3/4″ Vertical Door Clearance for Easy Access
  • Inside Work Light, Counterbalanced Door, External Circuit Breaker and Fusing, and Sliding Electrical Panel for Convenience and Ease of Use.
SLE20 LASER ENCLOSURE REAR

Popular Options:

Welded Steel Work Tables:
  • Compact: 28″ Wide by 40″ Deep by 34″ High
  • Standard 50″ Wide by 40″ Deep by 34″ High
  • Leveling Casters
  • Available Sliding Laptop PC Shelf
165 CFM Fume Extractors:
  • Compact: 12.5″ Wide by 13.5″ Deep by 18″ High
  • Standard: 13.5″ Wide by 15.25″ Deep by 27″ High
  • Multiple Filtration Options
Automatic Control via PLC, HMI or Push Button:
  • Access Door Control with Edge Guard Protection
  • Laser Height Adjustment Control
  • Rotary and Indexing Capability
SLE20 LASER ENCLOSURE FRONT ANGLED

…And Safe

  • FDA, CDRH Class | Certified Enclosure
  • Large Safety Window in Door
  • Laser Status Lights
  • Emergency Stop Button
  • Laser Positioning Button
  • Fume Extraction Port for an Optional or Existing Fume Extractor
  • Now Featuring Fume Extractor Quick Disconnect with Available Timing Functionality
  • Adjustable Feet for Leveling and Stability
SLE20 LASER ENCLOSURE FRONT
LASER ENCLOSURE PRODUCTION
LASER ENCLOSURE SLIDE OUT ELECTRICAL
Pull Out Electronics Drawer

MINI LASER ENCLOSURE MLE16 MINI LASER ENCLOSURE

MLE16A

Laser Enclosure

For KEYENCE MD-F, MD-X and ML-Z Series Lasers.

The MLE16A Mini Laser Enclosure from Turnkey Technologies meets your requirements for compact and light safe laser marking. This FDA and CDRH Class 1 certified enclosure is compatible with a variety of marking lasers and is a perfect combination of safety and utility for your marking needs.

MLE16 LASER ENCLOSURE FRONT ANGLED
MLE16 LASER ENCLOSURE FRONT

These Standard Features Keep You Productive

  • 16″ wide by 12″ deep Interior Work Space
  • 10″ wide by 10″ deep Nest Mounting Plate
  • 15″Maximum Clearance between and Laser Lens and Work Service

….And Safe:

  • FDA, CDRH Class 1 Certified Enclosure
  • Large Safety Window in Door
  • Laser Status Light
  • Emergency Stop Button
  • Fume Extraction Port for an optional Fume Extraction of Connection to an existing Extraction System
MLE16 LASER ENCLOSURE FRONT LIGHTED

….Optional:

  • Automatic Door
  • Fume Extraction Unit

LASER ENCLOSURE WORKCELL LEWC19 LEWC19

LEWC19A

Laser Enclosure

Customized LEWC19A

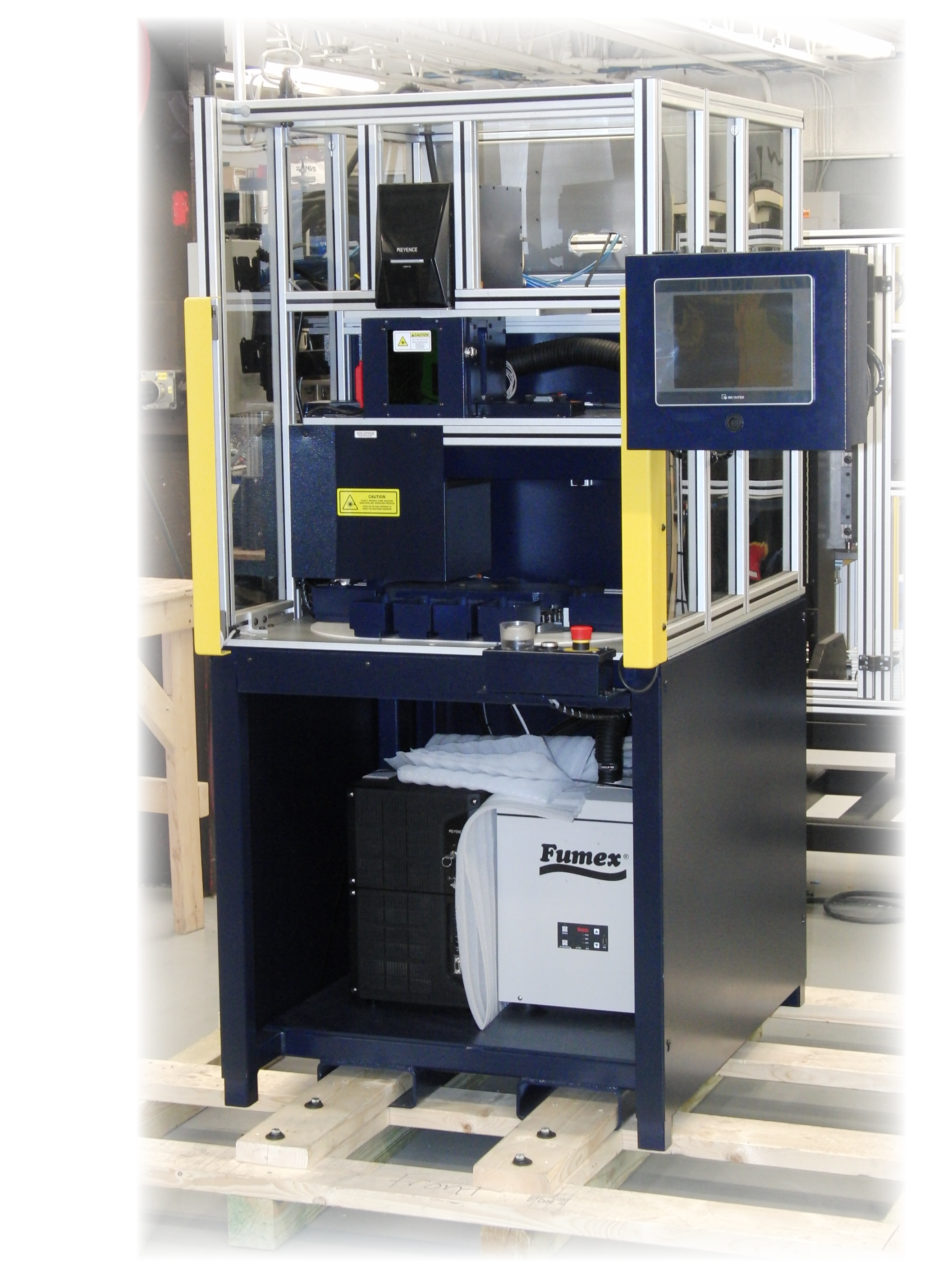

Customized LEWC19A Example #1

  • Laser Enclosure Work-cell
  • Completely Automatic
  • Servo XYZ
  • HMI
  • Shown with additional Rotary Indexer, Fumex Fume Extractor and a Printer.
  • Fully Safe Enclosure with a Safety Relay and a Safety Edge Strip for Finger Safety

Customized LEWC19A Example #2

Customized LEWC19A Example #2

  • Laser Enclosure Work-cell
  • Completely Automatic
  • Servo XYZ 6 ips Traverse Speed all Axis
  • HMI/PC/Industrial PC Options
  • Lens Protected by Light Curtain Sensor for Obstructions in the Z and Y directions.
  • Fully Safe Enclosure with a Safety Relay and a Safety Edge Strip for Finger Safety
  • 2 Additional Sensors for Z axis Height Detection on Multilevel Surfaces

LASER ENCLOSURE WORKCELL TDLE22 TDLE22
TDLE22 Telescoping Drawer Laser Enclosure

TDLE22 Telescoping Drawer Laser Enclosure

  • Push Button Start
  • No Pinch Drawer
  • Pneumatic Drawer, Electric Available
  • Tooling Plate
  • Y Laser Position Adjustment
  • Fume Extraction Port
TDLE22 Telescoping Drawer Laser Enclosure Angled
TDLE22 Telescoping Drawer Laser Enclosure with Table

LASER ENCLOSURE WORKCELL TAG FEED Automatic Tag Feeding Laser Marking Enclosure

TLM22 TAG LASER MARKING

  • Automatic Feeding from Tag Stack
  • Manually Adjustable Tag Magazine
  • HMI for Building Marking Recipe
    • Smallest Tag 1 x 3/8″
    • Largest Tag 5 x 5″
    • Maximum Vertical Stack Height 5in
  • Start Button/Status Light
  • E-Stop and Reset Buttons
  • Sensors
    • Part Presence in Marking Chamber
    • Part Exit of Marking Chamber
  • Fume Extraction Port
  • 16 Pin Connector for Keyence Marker, Ethernet for Communicating to the PLC, and an Amphenol connector for Controlling Fume Extractor
  • Interior Work Light
  • Laser Safe and FDA compliant for Class 1 Laser.

TLM22 TAG LASER MARKING

  • Marking up to 10 batches of Tags
  • Auto Feed
  • Auto Indexing of Tag Bins
  • Integration with Your Server

TLM22 TAG LASER MARKING

LASER ENCLOSURE ENCLOSURES CUSTOM! Various Custom Laser Enclosures

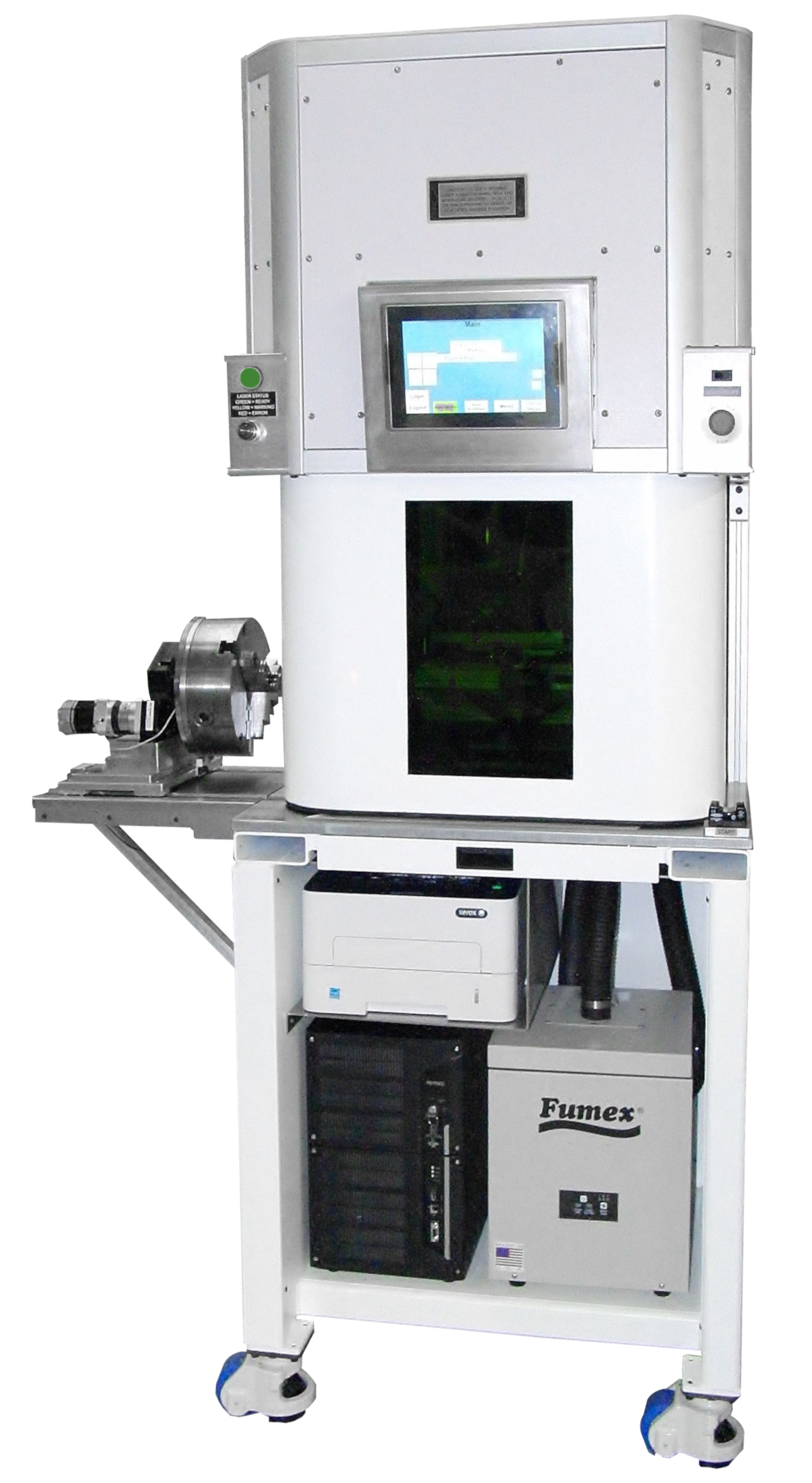

CUSTOM ROTARY

  • Bluetooth Communication with Customer Part
  • Custom Shielded Enclosure to Prevent Bluetooth Cross Talk
  • Custom Enclosure Features
    • Rotary Indexing Table
    • Rotary Indexing to Mark Part at Second Angle
  • Safety Light Curtain
  • Custom Programming

CUSTOM ROTARY LASER MARKER
CUSTOM LARGE BEARING MARKING ENCLOSURE

Custom Large Bearing Marking Enclosure

  • Completely Auto
  • Capable of Marking on a 30in Bearing Anywhere on the Face
  • With One Rotation to Mark on the OD
  • Many Extras
    • Bar Code Scanner for Input
    • Bar Code Scanning for Inspection
    • See Video Below….

Custom Laser Enclosure for Heavy Tools

  • Automatic Door and Shuttle
  • Manual Z-Axis
  • Capable of Processing Heavy Tools up to 400 pounds

CUSTOME LASER ENCLOSRE FOR HEAVY TOOLS
CUSTOM LASER ENCLOSURE WORKCELL

Custom Laser Enclosure Workcell

  • Marking on the Diameter of a Small Catheter
  • 2 Position Air Rotary Chuck
  • Auto Chucking

Custom Laser Enclosure Workcell: Marking on Gun Barrels

  • Auto Shuttle Part
  • Auto Rotation
  • Manual Y-Axis

CUSTOM LASER ENCLOSURE WORKCELL
Marking on a Gun Barrel

Custom Laser Enclosure Work Cell

  • Auto Shuttle
  • Manual “Z” Axis
  • Side Mounted Buttons

Custom Laser Enclosure Work Cell

  • Cutting and Measuring 6 Holes on 6 Surgical parts
  • Rotary Index Table
  • Telecentric Lens for Measuring
  • Auto Unload Station
  • Finish Goods and Reject Bin

Custom Laser Enclosure Workcell

  • Laser Cutting Adhesive Film
  • Automatic Installation of Push Pins
  • Poke-Yoke Features for Good and Bad Parts
  • Auto “X” Axis
  • Fume Remediation

Budgetary Pricing:

Mobile Device Stand

  • 180 Degrees of Laser Marker Rotation
  • Height and Reach Adjustable
  • Snorkel can be Designed for Standard or Wide Area Markers

This Unit is Equipped with:

  • Powered Vertical Axis
  • Fume Extractor
  • Swivel Locking Casters
  • Keyence MC-P1 (or HMI Operator Interface) (not included in price)

Product Pass Through Possibilities

(This is a Manual Door but if an Automatic Door is Required, it could be either a Pneumatic or Electric Actuation.)

Custom Rear Entry Laser Enclosure

  • This System has a Manual Door but Auto-Door is an Option.
  • The Pass-Through Feature Design through the Back Panel.

Custom Passthrough Laser Enclosure

  • Continuous Line Production
  • Encoder for Registration

Custom Laser Enclosure Work Cell

  • Passthrough Enclosure
  • Encoder for Communicating the Line Speed to the Laser Marker.

Custom Passthrough Laser Enclosure

  • Passthrough Enclosure
  • Adjustable Guides on Both Sides of Marking Field
  • Can also have Adjustable “Z” Axis
